Technical Data:

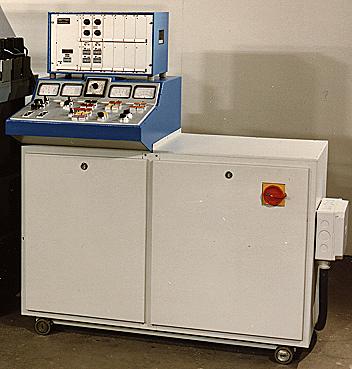

Type:	Control panel with floor unit
Voltage:	regulated 0 – 400 V
Current:	0 – 100 A respectivily 160 A
Special features:	Voltage constant Current constant Voltage program

Ergonomically aligned instrument and control elements. Residual ripple smaller 4% in all operating conditions. It contains four measuring instruments: voltmeter, 2 x amperemeter and coulombmeter. Connection types: Front side: Automatic program control and measurer version systems. Back side: Diptank with safety interlock.
